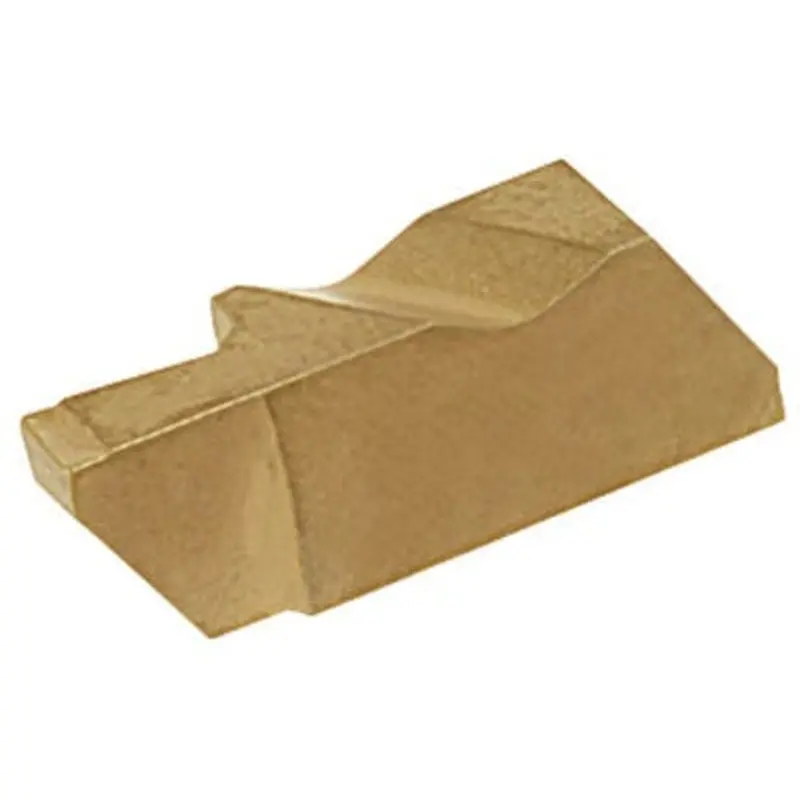

Kennametal NGD3125RK KC850 Top Notch NGD-K Grooving Insert

Description

NGD-K top notch grooving and turning insert for deep grooving with chip breaker. A CVD tri-phase coating on an extra-strong, cobalt-enriched alloyed substrate. Designed for heavy cutting of low, medium and high-carbon steel, medium hardness alloy and tool steel, stainless steel and some high temperature alloys. Excellent thermal and mechanical shock resistance makes grade KC850 ideally suited for difficult drilling applications. Used in inserts for Kendex/Metcut drill bodies.

Brand :Kennametal

Style :NGD-K

Manufacturer Part Number :1114904

Type :Grooving and Turning Insert

Features & Benefits : Chip control inserts provide a 10 positive rake to reduce cutting forces
Grooving with chip control for applications up to 12.7mm deep
Strong top notch design allows light turning and profiling in two directions
Three premium coated grades are recommended for grooving a wide range of materials

Insert Size :3

Insert Size (Hand) :3 Right

Coating/Finish :CVD

Grade :KC850

ISO Code :NGD3125RK

Groove Width (mm) :3.18

Maximum Groove Depth (mm) :6.35

Maximum Cutting Depth (mm) :6.35

Cut Hand :Right Hand

Insert Hand :Right Hand
