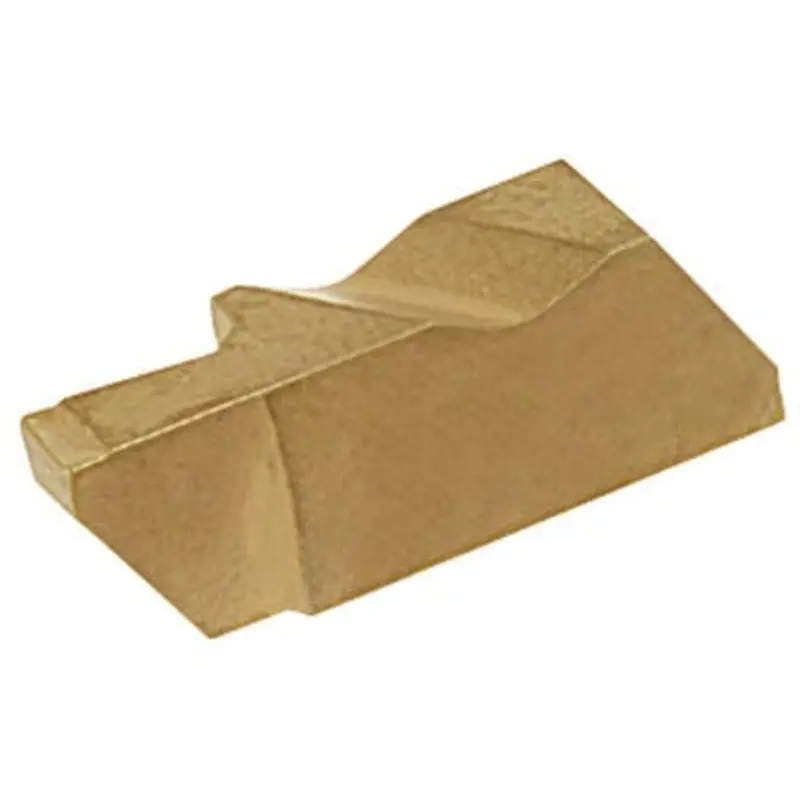

Kennametal NGD3125RK KC5025 Top Notch NGD-K Grooving Insert

Description

NGD-K top notch grooving and turning insert for deep grooving with chip breaker. An advanced PVD-AlTiN-coated grade with a tough, ultra-fine-grain unalloyed substrate. For general purpose machining of most steel, stainless steel, high temperature alloys, titanium, irons and non-ferrous materials. Speeds may vary from low to medium and will handle interruptions and high feed rates.

Brand :Kennametal

Style :NGD-K

Manufacturer Part Number :1808583

Type :Grooving and Turning Insert

Features & Benefits : Chip control inserts provide a 10 positive rake to reduce cutting forces
Grooving with chip control for applications up to 12.7mm deep
Strong top notch design allows light turning and profiling in two directions
Three premium coated grades are recommended for grooving a wide range of materials

Insert Size :3

Insert Size (Hand) :3 Right

Coating/Finish :PVD

Grade :KC5025

ISO Code :NGD3125RK

Groove Width (mm) :3.18

Maximum Groove Depth (mm) :6.35

Maximum Cutting Depth (mm) :6.35

Cut Hand :Right Hand

Insert Hand :Right Hand
